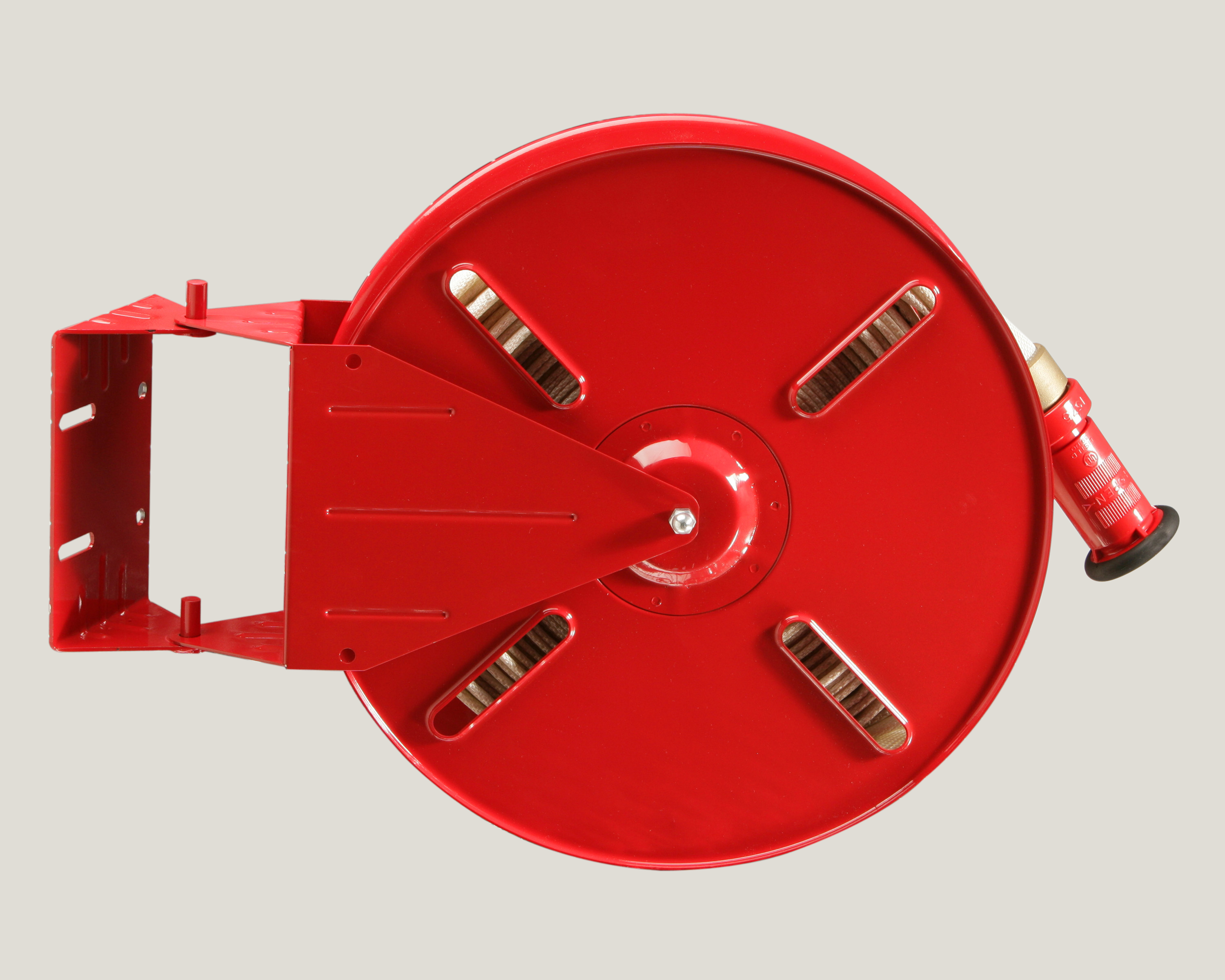

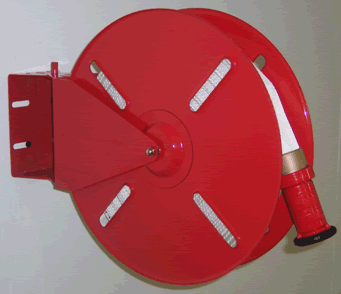

Hose Storage Reels

Heavy duty construction
One piece wall bracket (14 gauge) (R24-24 is 12 gauge) for easy mounting - 180 ° swing will also take pipe clamps to 3"
Baked enamel finish (Red only)
Compact size - smaller reel hub to allow more hose storage
Welded construction - rim (18 gauge) hub cap, spokes, all welded for form solid wheels, separated by a moulded poly hub, bolted (5/16" rod) together to form a sturdy unit
Hose is double rolled from center of length, coupled to valve and nozzle
Hose is easily removed by pulling toward fire area. Instantly ready for action when completely removed, and valve is opened

		Dimensions			Maximum Capacity
Model No.	Hose Size	A	B	C	Lt. Weight Hose	Rubber Lined Single Jacket	Shipping Weight
R 15 - 18	1 1/2"	18"	23 1/2"	6 1/4"	150'	50' - 85'	12 lbs.
R 15 - 24	1 1/2"	24"	29"	6 1/4"	250'	100'	15 lbs.
R 25 - 24	2 1/2"	24"	29"	8 1/4"	100'	100'	20 lbs.
